Descrição do Produto

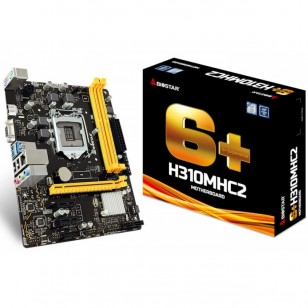

PLACA MAE BIOSTAR INTEL LGA 1151 MATX DDR4 HDMI/VGA H310MHC2
(Suporta somente Proc. de 8º E 9º Gerações)
- Supports 9th & 8th Generation Intel® Core™ Processor
- Intel H310 single chip architecture
- Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
- Support USB 3.1 Gen1
- Support HDMI display port
- Support GbE LAN
| Chipset | Intel H310 |
| CPU SUPPORT | 9th Gen Intel® Core™ i9 LGA 1151 Processor 9th Gen Intel® Core™ i7 LGA 1151 Processor 9th Gen Intel® Core™ i5 LGA 1151 Processor 9th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Core™ i7 LGA 1151 Processor 8th Gen Intel® Core™ i5 LGA 1151 Processor 8th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Pentium® LGA 1151 Processor 8th Gen Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt |
| MEMORY | Support Dual Channel DDR4 1866/2133/2400/2666 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA3 Connectors |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller |
| CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 4 x USB 3.1 Gen1 Ports (2 on rear I/Os and 2 via internal header) 6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slots |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.1 Gen1 Ports 2 x USB 2.0 Port 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header support 2 USB 3.1 Gen1 ports) 2 x USB 2.0 Headers (each header support 2 USB 2.0 ports) 4 x SATA3 6Gb/s Connectors 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 22.6 cm x 17.1 cm ( W x L ) |
| OS SUPPORT | Support Windows 10(x64) Windows 7 ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
PCB Version : Ver. 7.x
| Socket | Processor | Processor Model | sSpec/OPN# | CPU Speed | Watts |
|---|---|---|---|---|---|
| 1151 | Intel Core i7 Processor | 8700T | QP4P | 2.40 GHz | 35W |
| 1151 | Intel Core i7 Processor | 8700K | QNMK | 3.70 GHz | 95W |
| 1151 | Intel Core i7 Processor | 8700 | QNML | 3.20 GHz | 65W |
| 1151 | Intel Core i7 Processor | (*) 9700T | QRNL | 2GHz | 35w |
| 1151 | Intel Core i7 Processor | (*) 9700KF | QRND | 3.60 GHz | 95w |
| 1151 | Intel Core i7 Processor | (*) 9700KF | QRNC | 3.60 GHz | 95w |
| 1151 | Intel Core i7 Processor | (*) 9700K | QRNB | 3.60 GHz | 95w |
| 1151 | Intel Core i7 Processor | (*) 9700K | QQPK | 3.60 GHz | 95W |
| 1151 | Intel Core i7 Processor | (*) 9700F | QRNK | 3.0 GHz | 65w |
| 1151 | Intel Core i7 Processor | (*) 9700 | QRNH | 3.0 GHz | 65w |
| 1151 | Intel Core i5 Processor | 9600T | QQU5 | 2.30 GHz | 35w |
| 1151 | Intel Core i5 Processor | 9500F | QRJR | 3.0 GHz | 65w |
| 1151 | Intel Core i5 Processor | 9500 | QQU7 | 3.0 GHz | 65w |
| 1151 | Intel Core i5 Processor | 9400T | QP70 | 1.80 GHz | 35w |
| 1151 | Intel Core i5 Processor | 8600T | QP50 | 2.30 GHz | 35W |
| 1151 | Intel Core i5 Processor | 8600K | QNMM | 3.60 GHz | 95W |
| 1151 | Intel Core i5 Processor | 8600 | QP4W | 3.10 GHz | 65W |
| 1151 | Intel Core i5 Processor | 8500T | SP5H | 2.10 GHz | 35W |
| 1151 | Intel Core i5 Processor | 8500 | QP5J | 3.0 GHz | 65W |
| 1151 | Intel Core i5 Processor | 8400T | QP52 | 1.70 GHz | 35W |
| 1151 | Intel Core i5 Processor | 8400 | QNMN | 2.80 GHz | 65W |
| 1151 | Intel Core i5 Processor | (*) 9600KF | QRNG | 3.70 GHz | 95w |
| 1151 | Intel Core i5 Processor | (*) 9600KF | QRNF | 3.60 GHz | 95w |
| 1151 | Intel Core i5 Processor | (*) 9600K | QQPL | 3.70 GHz | 95W |
| 1151 | Intel Core i5 Processor | (*) 9600K | QRNE | 3.70 GHz | 95w |
| 1151 | Intel Core i5 Processor | (*) 9400T | QRNR | 1.80 GHz | 35w |
| 1151 | Intel Core i5 Processor | (*) 9400F | QRNP | 2.90 GHz | 65w |
| 1151 | Intel Core i5 Processor | (*) 9400F | QRNQ | 2.90 GHz | 65w |
| 1151 | Intel Core i5 Processor | (*) 9400 | QRNN | 2.90 GHz | 65w |
| 1151 | Intel Core i5 Processor | (*) 9400 | QQPM | 2.90 GHz | 65w |
| 1151 | Intel Core i3 Processor | 9350K | QQFU | 4.0 GHz | 91w |
| 1151 | Intel Core i3 Processor | 9300T | QQFX | 3.20 GHz | 35w |
| 1151 | Intel Core i3 Processor | 9300 | QQFV | 3.70 GHz | 62w |
| 1151 | Intel Core i3 Processor | 9100T | QQFY | 3.10 GHz | 35w |
| 1151 | Intel Core i3 Processor | 9100 | QQFW | 3.60 GHz | 65w |
| 1151 | Intel Core i3 Processor | 8350K | QNES | 4.0 GHz | 91W |
| 1151 | Intel Core i3 Processor | 8300T | QP5P | 3.20 GHz | 35W |
| 1151 | Intel Core i3 Processor | 8300 | QP5N | 3.70 GHz | 62W |
| 1151 | Intel Core i3 Processor | 8100T | QP5Q | 3.10 GHz | 35W |
| 1151 | Intel Core i3 Processor | 8100 | QNET | 3.60 GHz | 65W |
| 1151 | Intel Core i3 Processor | (*) 9350KF | QRPK | 4.0 GHz | 91w |
| 1151 | Intel® Pentium® Processor | G5620 | QP7L | 4.0 GHz | 54w |
| 1151 | Intel® Pentium® Processor | G5600T | QP7M | 3.30GHz | 35w |
| 1151 | Intel® Pentium® Processor | G5600F | QRU3 | 3.9GHz | 54w |
| 1151 | Intel® Pentium® Processor | G5600 | QP5R | 3.9GHz | 54W |
| 1151 | Intel® Pentium® Processor | G5500T | QP5V | 3.20 GHz | 35W |
| 1151 | Intel® Pentium® Processor | G5500 | QP5U | 3.80 GHz | 54W |
| 1151 | Intel® Pentium® Processor | G5420T | QP72 | 3.20 GHz | 35w |
| 1151 | Intel® Pentium® Processor | G5420T | QP7U | 3.20 GHz | 35w |
| 1151 | Intel® Pentium® Processor | G5420 | QP7T | 3.80 GHz | 54w |
| 1151 | Intel® Pentium® Processor | G5420 | QP71 | 3.80 GHz | 58w |
| 1151 | Intel® Pentium® Processor | G5400T | QP5X | 3.10 GHz | 35W |
| 1151 | Intel® Pentium® Processor | G5400 | QP5W | 3.70 GHz | 54W |
| 1151 | Intel® Celeron® Processor | G4950 | QP7W | 3.30 GHz | 54w |
| 1151 | Intel® Celeron® Processor | G4930T | QP7X | 3.0GHz | 35w |
| 1151 | Intel® Celeron® Processor | G4930 | QP7V | 3.20 GHz | 54w |
| 1151 | Intel® Celeron® Processor | G4920 | QP5Y | 3.20 GHz | 54W |
| 1151 | Intel® Celeron® Processor | G4900T | QP5Z | 2.9GHz | 35W |
| 1151 | Intel® Celeron® Processor | G4900 | QP9G | 3.10 GHz | 54W |
| 1151 | Intel Core i9 Processor | (*) 9900T | QRNA | 2.1GHz | 35w |
| 1151 | Intel Core i9 Processor | (*) 9900KF | QRN6 | 3.60 GHz | 95w |
| 1151 | Intel Core i9 Processor | (*) 9900KF | QRK0 | 3.60 GHz | 95w |
| 1151 | Intel Core i9 Processor | (*) 9900K | QRJZ | 3.60 GHz | 95w |
| 1151 | Intel Core i9 Processor | (*) 9900K | QQPP | 3.60 GHz | 95W |
| 1151 | Intel Core i9 Processor | (*) 9900 | QRN7 | 3.10 GHz | 65w |
