Descrição do Produto

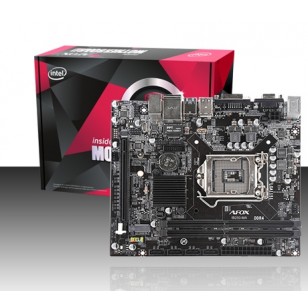

PLACA MAE AFOX P/ INTEL LGA 1151 MATX IB250-MA DVI/VGA/SOM/LAM/USB3 DDR4
(Suporta Proc. de 6º e 7º Gerações)
Model Name: IB250-MA
Chipset: Intel B110
Socket: LGA 1151
Memory Support: Dual Channel DDR4
| Processor | Support Core™ i7 / Core™ i5 / Core™ i3 Processors |
| Chipset | Intel® B250 |
| On-Board graphics | Integrated Graphics Processor |
| Memory Support | Dual Channel DDR4 2133/2400MHz Memory, up to 32GB |
| Dimm | 2 x Memory Slots (Max. up to 16GB each) |
| LAN | Realtek RTL8105E 10/100Mbps Ethernet on board |
| Audio | Realtek ALC662 integrated on board |
| Slot | 1 x PCI Express x16 Slot |
| SATA | 4 x SATA port |
| ON-Board Pinheaders / Connectors |
1 x 24-pin ATX Power Connetor |
| 1 x 4-pin ATX 12V Power Connetor | |
| 2 x USB 2.0 pinheader supports additional 2 USB 2.0 ports | |
| 1 x USB 3.0 pinheader supports additional 2 USB 3.0 ports | |
| 1 x Front panel audio connector | |
| Back I/O Ports | 1 x PS/2 mouse port |
| 1 x PS/2 keyboard port | |
| 1 x VGA | |
| 1 x DVI | |
| 4 x USB 2.0 | |
| 2 x USB 3.0 | |
| 1 x LAN jack | |
| 3 x Audio jack | |
| BIOS | UEFI BIOS |
| Form Factor | Micro ATX - 197 x 170 cm mm |
| Accessories | 1 x Driver CD |
| 1 x User Manual | |
| 1 x I/O Backboard | |
| 1 x SATA cable |
Informação Adicional
| Cor | Não |
|---|
