Descrição do Produto

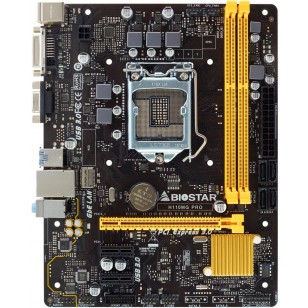

PLACA MAE MB BIOSTAR P/ INTEL LGA 1151 H110MD PRO VGA/DVI/SOM/LAM/USB3 DDR3L
(Bios Atualizada, suporta Proc. Kaby Lake 7a Geração)
H110MD PRO Ver. 6.x
Socket : 1151
- Supports 6th Generation Intel® Core™ Processor
- Intel H110 single chip architecture
- Support 2-DIMM DDR3L-1600/ 1333 up to 16G maximum capacity
- Support USB 3.0
- Support DVI display port
- Support GbE LAN
| Chipset | Intel H110 |
| CPU SUPPORT | Intel® Core™ i7 LGA 1151 Processor Intel® Core™ i5 LGA 1151 Processor Intel® Core™ i3 LGA 1151 Processor Intel® Pentium® LGA 1151 Processor Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 91Watt |
| MEMORY | Support Dual Channel DDR3L 1600/ 1333 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory |
| EXPANSION SLOT | 1 x PCI-E x16 3.0 Slot 2 x PCI-E x1 2.0 Slot |
| STORAGE | 4 x SATA3 Connector |
| USB | 2 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Header |
| LAN | Realtek RTL8111H - 10/100/1000 Controller Support Super LAN Surge Protection |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| CODEC | Realtek ALC887 8-Channel HD Audio |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz 1 x VGA Port, resolution up to 1920 x 1200 @60Hz 1 x RJ-45 Port 3 x Audio Connector |
| INTERNAL I/O | 1 x USB 3.0 Header 2 x USB 2.0 Header 4 x SATA3 6Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L ) |
| OS SUPPORT | Support Windows 7 / 8.1(x64) / 10(x64) |
| BUNDLE SOFTWARE | BullGuard BIO-Remote2 Smart Speed LAN |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update |
PCB Version : Ver. 6.x
| Socket | Processor | Processor Model | sSpec/OPN# | CPU Speed | FSB/HT/BCLK | Watts |
|---|---|---|---|---|---|---|
| 1151 | Intel Core i7 Processor | 6700T | QJEB | 2.80 GHz | 35W | |
| 1151 | Intel Core i7 Processor | 6700 | QJE9 | 3.40 GHz | 65W | |
| 1151 | Intel Core i7 Processor | * 7700T | QKHE | 2900MHz | 35W | |
| 1151 | Intel Core i7 Processor | * 7700K | QKH8 | 4200Mhz | 91W | |
| 1151 | Intel Core i7 Processor | * 7700 | QKHA | 3600Mhz | 65W | |
| 1151 | Intel Core i5 Processor | 6600T | QJEK | 2.70 GHz | 35W | |
| 1151 | Intel Core i5 Processor | 6600 | QJEE | 3.30GHz | 65W | |
| 1151 | Intel Core i5 Processor | 6500T | QJEJ | 2.50 GHz | 35W | |
| 1151 | Intel Core i5 Processor | 6500 | QJEF | 3.20 GHz | 65W | |
| 1151 | Intel Core i5 Processor | 6400T | QJE7 | 2.20 GHz | 35W | |
| 1151 | Intel Core i5 Processor | 6400 | QJEH | 2.70 GHz | 65W | |
| 1151 | Intel Core i5 Processor | * 7600T | QKHF | 2800Mhz | 35W | |
| 1151 | Intel Core i5 Processor | * 7600K | QKH9 | 3800Mhz | 91W | |
| 1151 | Intel Core i5 Processor | * 7600 | QKHB | 3500Mhz | 65W | |
| 1151 | Intel Core i5 Processor | * 7500T | QKHG | 2700Mhz | 35W | |
| 1151 | Intel Core i5 Processor | * 7500 | QKHC | 3400Mhz | 65W | |
| 1151 | Intel Core i5 Processor | * 7400T | QKHH | 2400Mhz | 35W | |
| 1151 | Intel Core i5 Processor | * 7400 | QKZQ | 3000Mhz | 65W | |
| 1151 | Intel Core i3 Processor | 6320 | QJZ8 | 3900Mhz | 47W | |
| 1151 | Intel Core i3 Processor | 6300T | QJZC | 3300Mhz | 35W | |
| 1151 | Intel Core i3 Processor | 6300 | QJZ9 | 3800Mhz | 47W | |
| 1151 | Intel Core i3 Processor | 6100T | QJZE | 3200Mhz | 35W | |
| 1151 | Intel Core i3 Processor | 6100 | QJZG | 3700Mhz | 47W | |
| 1151 | Intel Core i3 Processor | * 7320 | QL34 | 4.1 GHz | 51W | |
| 1151 | Intel Core i3 Processor | * 7300T | QL3M | 3.50 GHz | 35W | |
| 1151 | Intel Core i3 Processor | * 7300 | QL35 | 4.0 GHz | 51W | |
| 1151 | Intel Core i3 Processor | * 7100T | QL3P | 3.40 GHz | 35W | |
| 1151 | Intel Core i3 Processor | * 7100 | QL38 | 3.9GHz | 51W | |
| 1151 | Intel® Pentium® Processor | G4520 | QJZM | 3600Mhz | 47W | |
| 1151 | Intel® Pentium® Processor | G4500T | QK1A | 3000Mhz | 35W | |
| 1151 | Intel® Pentium® Processor | G4500 | QJZJ | 3500Mhz | 47W | |
| 1151 | Intel® Pentium® Processor | G4400T | QJZQ | 2900MHz | 35W | |
| 1151 | Intel® Pentium® Processor | G4400 | QJP8 | 3300Mhz | 65W | |
| 1151 | Intel® Pentium® Processor | G4400 | QJZK | 3300Mhz | 47W | |
| 1151 | Intel® Pentium® Processor | * G4620 | QL3A | 3.70 GHz | 51W | |
| 1151 | Intel® Pentium® Processor | * G4600T | QL3R | 3.0GHz | 35W | |
| 1151 | Intel® Pentium® Processor | * G4600 | QL3B | 3.60 GHz | 51W | |
| 1151 | Intel® Pentium® Processor | * G4560T | QL3T | 2.90GHz | 35W | |
| 1151 | Intel® Pentium® Processor | * G4560 | QKZZ | 3.50 GHz | 54W | |
| 1151 | Intel® Celeron® Processor | G3920 | QJZW | 2900MHz | 47W | |
| 1151 | Intel® Celeron® Processor | G3900T | QJZS | 2600Mhz | 35W | |
| 1151 | Intel® Celeron® Processor | G3900 | QJZU | 2800Mhz | 47W | |
| 1151 | Intel® Celeron® Processor | * G3950 | QL3G | 3.0 GHz | 51W | |
| 1151 | Intel® Celeron® Processor | * G3930T | QL3V | 2.70 GHz | 35W | |
| 1151 | Intel® Celeron® Processor | * G3930 | QL3H | 2.90GHz | 51W |
Produto OEM:
Vai completa com CD, espelho, cabos, etc. Apenas não acompanha a caixa, pois ela é "OEM", ou seja, vem em caixas grande com 20 peças cada.
* Garantia de 03 meses
Informação Adicional
| Cor | Não |
|---|
