Descrição do Produto

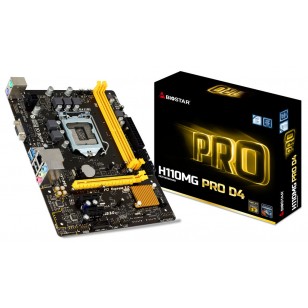

PLACA MAE BIOSTAR P/ INTEL LGA 1151 MATX H110MH PRO D4 HMDI/VGA/SOM/LAM DDR4
(Suporta Proc. de 6º e 7º Gerações)
H110MH PRO D4 Ver. 6.x
Soquete : 1151
- Supports 7th/6th Generation Intel® Core™ Processor
- Intel H110 single chip architecture
- Support 2-DIMM DDR4-2133/ 1866 up to 32G maximum capacity
- Support USB 3.0
- Support HDMI multimedia port
- Support GbE LAN
| Chipset | Intel H110 |
| Suporta Processador | 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor 7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor 7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor 7th & 6th Gen Intel® Pentium® LGA 1151 Processor 7th & 6th Gen Intel® Celeron® LGA 1151 Processor TDP Máximo do Processador (Thermal Design Power) : 91Watt |
| MEMÓRIA | Support Dual Channel DDR4 2133/ 1866 MHz 2 x DDR4 DIMM Memory Slot Máx. Suporta até 32GB de memória |
| VIDEO INTEGRADO | By CPU model Supports DX12 Supports HDCP |
| ARMAZENAMENTO | 4 x SATA3 Connector |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 2 x USB 3.0 Port 1 x USB 3.0 Header 2 x Porta USB 2.0 2 x Conector USB 2.0 |
| SLOT DE EXPANSÃO | 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slot |
| PORTAS TRASEIRAS | 1 x Mouse PS/2 1 x Teclado PS/2 2 x USB 3.0 Port 2 x Porta USB 2.0 1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz, compliant with HDMI 1.4a 1 x VGA Port, resolution up to 1920 x 1200 @60Hz 1 x LAN port 3 x Audio Jacks |
| I/O INTERNO | 1 x USB 3.0 Header 2 x USB 2.0 Header 4 x SATA3 6Gb/s Connector 1 x Conector para Audio Frontal 1 x Conector do Painel Frontal 1 x CPU Fan Connector 1 x System Fan Connector 1 x Serial Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSÕES | Dimension do Formato Micro ATX: 22.6cm x 17.7cm ( W x L ) |
| SUPORTA SO | Suporta Windows 7 / 8.1(x64) / 10(x64) |
| BUNDLE SOFTWARE | BullGuard BIO-Remote2 Smart Speed LAN |
| ACESSÓRIOS | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update |
PROCESSADORES SUPORTADOS:
| Socket | Processor | Processor Model | sSpec/OPN# | CPU Speed | FSB/HT/BCLK | Watts |
|---|---|---|---|---|---|---|
| 1151 | Intel Core i7 Processor | 6700T | QJEB | 2.80 GHz | 35W | |
| 1151 | Intel Core i7 Processor | 6700 | QJE9 | 3.40 GHz | 65W | |
| 1151 | Intel Core i7 Processor | * 7700T | QKHE | 2900MHz | 35W | |
| 1151 | Intel Core i7 Processor | * 7700K | QKH8 | 4200Mhz | 91W | |
| 1151 | Intel Core i7 Processor | * 7700 | QKHA | 3600Mhz | 65W | |
| 1151 | Intel Core i5 Processor | 6600T | QJEK | 2.70 GHz | 35W | |
| 1151 | Intel Core i5 Processor | 6600 | QJEE | 3.30GHz | 65W | |
| 1151 | Intel Core i5 Processor | 6500T | QJEJ | 2.50 GHz | 35W | |
| 1151 | Intel Core i5 Processor | 6500 | QJEF | 3.20 GHz | 65W | |
| 1151 | Intel Core i5 Processor | 6400T | QJE7 | 2.20 GHz | 35W | |
| 1151 | Intel Core i5 Processor | 6400 | QJEH | 2.70 GHz | 65W | |
| 1151 | Intel Core i5 Processor | * 7600T | QKHF | 2800Mhz | 35W | |
| 1151 | Intel Core i5 Processor | * 7600K | QKH9 | 3800Mhz | 91W | |
| 1151 | Intel Core i5 Processor | * 7600 | QKHB | 3500Mhz | 65W | |
| 1151 | Intel Core i5 Processor | * 7500T | QKHG | 2700Mhz | 35W | |
| 1151 | Intel Core i5 Processor | * 7500 | QKHC | 3400Mhz | 65W | |
| 1151 | Intel Core i5 Processor | * 7400T | QKHH | 2400Mhz | 35W | |
| 1151 | Intel Core i5 Processor | * 7400 | QKZQ | 3000Mhz | 65W | |
| 1151 | Intel Core i3 Processor | 6320 | QJZ8 | 3900Mhz | 47W | |
| 1151 | Intel Core i3 Processor | 6300T | QJZC | 3300Mhz | 35W | |
| 1151 | Intel Core i3 Processor | 6300 | QJZ9 | 3800Mhz | 47W | |
| 1151 | Intel Core i3 Processor | 6100T | QJZE | 3200Mhz | 35W | |
| 1151 | Intel Core i3 Processor | 6100 | QJZG | 3700Mhz | 47W | |
| 1151 | Intel Core i3 Processor | * 7320 | QL34 | 4.1 GHz | 51W | |
| 1151 | Intel Core i3 Processor | * 7300T | QL3M | 3.50 GHz | 35W | |
| 1151 | Intel Core i3 Processor | * 7300 | QL35 | 4.0 GHz | 51W | |
| 1151 | Intel Core i3 Processor | * 7100T | QL3P | 3.40 GHz | 35W | |
| 1151 | Intel Core i3 Processor | * 7100 | QL38 | 3.9GHz | 51W | |
| 1151 | Intel® Pentium® Processor | G4520 | QJZM | 3600Mhz | 47W | |
| 1151 | Intel® Pentium® Processor | G4500T | QK1A | 3000Mhz | 35W | |
| 1151 | Intel® Pentium® Processor | G4500 | QJZJ | 3500Mhz | 47W | |
| 1151 | Intel® Pentium® Processor | G4400T | QJZQ | 2900MHz | 35W | |
| 1151 | Intel® Pentium® Processor | G4400 | QJP8 | 3300Mhz | 65W | |
| 1151 | Intel® Pentium® Processor | G4400 | QJZK | 3300Mhz | 47W | |
| 1151 | Intel® Pentium® Processor | * G4620 | QL3A | 3.70 GHz | 51W | |
| 1151 | Intel® Pentium® Processor | * G4600T | QL3R | 3.0GHz | 35W | |
| 1151 | Intel® Pentium® Processor | * G4600 | QL3B | 3.60 GHz | 51W | |
| 1151 | Intel® Pentium® Processor | * G4560T | QL3T | 2.90GHz | 35W | |
| 1151 | Intel® Pentium® Processor | * G4560 | QKZZ | 3.50 GHz | 54W | |
| 1151 | Intel® Celeron® Processor | G3920 | QJZW | 2900MHz | 47W | |
| 1151 | Intel® Celeron® Processor | G3900T | QJZS | 2600Mhz | 35W | |
| 1151 | Intel® Celeron® Processor | G3900 | QJZU | 2800Mhz | 47W | |
| 1151 | Intel® Celeron® Processor | * G3950 | QL3G | 3.0 GHz | 51W | |
| 1151 | Intel® Celeron® Processor | * G3930T | QL3V | 2.70 GHz | 35W | |
| 1151 | Intel® Celeron® Processor | * G3930 | QL3H | 2.90GHz | 51W |
